<p>Hello,</p>
<p>I am about to rework my homebuilt firewall scripts using IPTABLES
(I am aware nftables is out there). It is intended for a personal
desktop computer.</p>
<p>However, in preparation for that, I am also reworking the
documentation I have about IPTABLES into something I would
consider more useful for myself, that what I have seen in various
places on the Internet.</p>
<p>I am hoping that members would be willing to offer feedback on
the my approach and style for the presentation of my
HTML/CSS/JS-based indexing pages to the application of various
targets for various table states in the different chains.</p>
<p>Early days in my work, focusing on the presentation of the
content. My next focus will be on the control of formatting for
the documentation related to the individual target cells.</p>
<p>The individual cells are clickable to obtain the context-based
documentation.</p>

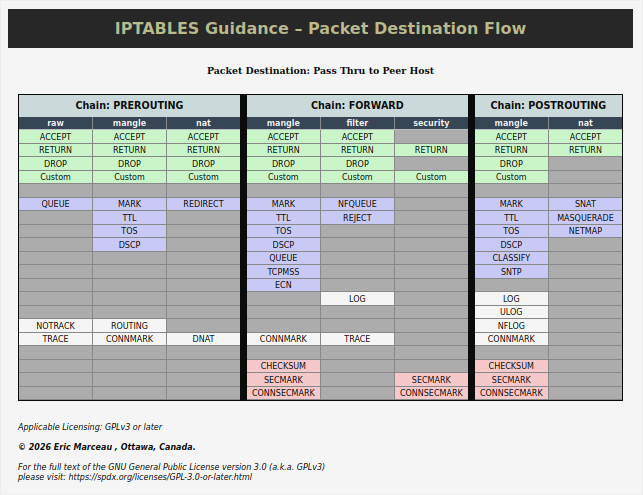

<p>As an example of my approach, one of these indexing pages, for
the "forwarding" stream, is attached. I also include here a
snapshot of what that looks like:</p>
<blockquote>
<p><img src="cid:part1.9I8YtGHa.je9gKFgJ@rogers.com"
moz-do-not-send="false"></p>
</blockquote>
<p>To give a feel for the interraction, I also include 3 sample
documentation files for each of</p>
<ul>
<li>PREROUTING raw (header)</li>
<li>PREROUTING raw (cell PRE_raw_t1) for the target ACCEPT</li>
<li>POSTROUTING nat</li>
</ul>
<p>I am hoping to structure the documentation as a tar file that can
be dropped in, expanded into an installation directory and used
directly as is, not requiring the imposition of access thru a
server.</p>
<p>At my end, for some reason the "watch" class is not giving me the
expected "light yellow" shading, or any other shading colour for
that matter. Not sure why.</p>
<p>I hope this type of documentation would be something that others
would feel is desirable.</p>

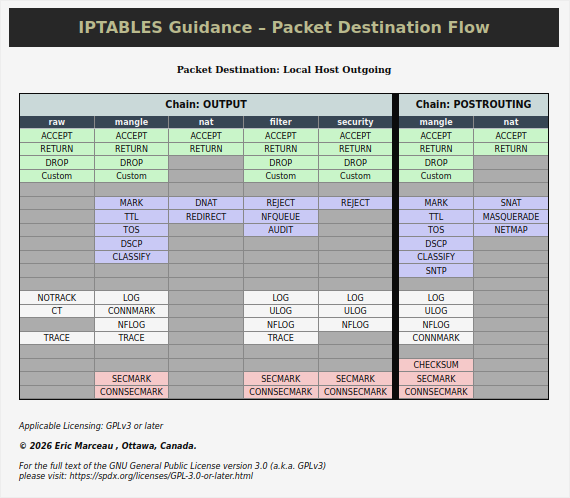

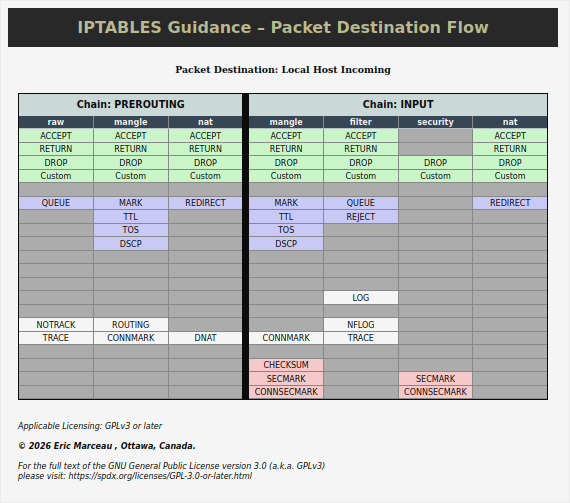

<p>Here are snapshots for the other two streams:</p>
<blockquote>
<p><img src="cid:part2.9O8fa7z9.KhloDRgI@rogers.com"
moz-do-not-send="false"></p>
<p><br>
</p>
<p><img src="cid:part3.tQje1pUu.QKubLEGb@rogers.com"
moz-do-not-send="false"></p>
</blockquote>
<p>I look forward to the Community's feedback.</p>
<p>Thank you,</p>
<p><br>
</p>
<p>Eric Marceau</p>
<p><br>
</p>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<!-- for JavaScript overlay popup -->
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<!-- for copyright -->
<meta http-equiv="content-type" content="text/html; charset=utf-8"/>
<meta name="created" content="2026-07-23T18:10:00.000000000"/>
<meta name="changedby" content="Eric Marceau"/>
<meta name="changed" content="2026-07-23T18:10:00.000000000"/>
<title>
IPTABLES Guidance – Packet Destination Flow – Forwarding
</title>
<!-- for copyright -->
<!--
SPDX-License-Identifier: GPLv3-or-later
SPDX-FileCopyrightText: © 2026 Eric Marceau <ericmarceau [ at ] rogers [ dot ] com>
For the full text of the GNU General Public License version 3.0 (a.k.a. GPLv3)
please visit: https://spdx.org/licenses/GPL-3.0-or-later.html
-->
<!-- for copyright -->
<link rel="license" href="https://spdx.org/licenses/GPL-3.0-or-later.html";>
<!-- ####################################################################### -->
<!-- for copyright -->
<script type="application/ld+json">
{
"@context": "https://schema.org";,
"@type": "WebPage",
"license": "https://spdx.org/licenses/GPL-3.0-or-later.html";,
"copyrightYear": "2026",
"copyrightHolder": {
"@type": "Person",
"name": "Eric Marceau",
"email": "ericmarceau [ at ] rogers [ dot ] com"
}
}
</script>
<!-- ####################################################################### -->
<!-- ####################################################################### -->
<!-- Style section for indexing grid offering choices of iptables targets
which, when clicked upon the cell, will trigger the pop-up window
presenting the guidance documentation specifically related to
that target for packets that have reached a given table state
within the governing chain
-->
<style>
body {
text-align: center ;
align-items: center ;
}
footer {
text-align: left ;
/* */
padding-top: 15px ;
padding-right: 5px ;
padding-bottom: 5px ;
padding-left: 30px ;
/* */
font-family: sans-serif ;
font-size: 1em ;
font-weight: normal ;
font-style: italic ;
}
/******************************************************************************/
.PageLayout {
position: relative ;
width: 1250px ;
padding: 10px ;
display: grid ;
grid-template-columns: 1fr 1210px 1fr ;
}
.GuidanceBanner {
grid-column: 1 / -1 ;
display: block ;
/* */
padding: 20px ;
font-family: sans-serif ;
font-size: 2em ;
font-weight: bold ;
text-align: center ;
/* */
background-color: #1f1f1f ;
color: #bfbf8f ;
}
.FlowDescription {
display: block ;
position: relative ;
/* */
padding-top: 15px ;
padding-bottom: 15px ;
}
.Forwarding {
grid-column: 2 ;
position: relative ;
/* */
display: flex ;
flex-direction: columns ;
width: 1210px ;
}
/* Individual Table Containers */
.dTblPreRouting, .dTblForward, .dTblPostRouting, .dTblDivider {
display: flex ;
flex-direction: column ;
font-family: sans-serif ;
}
.dTblPreRouting {
width: 450px ;
border: 1px solid #000 ;
}
.dTblForward {
width: 450px ;
border: 1px solid #000 ;
}
.dTblPostRouting {
width: 300px ;
border: 1px solid #000 ;
}
.dTblDivider {
width: 10px ;
border-top: 1px solid #000 ;
border-bottom: 1px solid #000 ;
background-color: #000000 ;
}
/******************************************************************************/
/* Table Top Row: Full-width Banner */
.dTblBanner {
background-color: #d0e0e0 ;
padding: 10px ;
text-align: center ;
font-size: 1.2em ;
font-weight: bold ;
}
/******************************************************************************/
/* Table Second: Column Headers Container */
.dTblRowPreRouting, .dTblRowForward, .dTblRowPostRouting, .dTblRowDivider {
display: flex ;
border-bottom: 2px solid #bdc3c7 ;
font-weight: bold ;
background-color: #304050 ;
color: white ;
}
.dTblRowDivider {
background-color: #ecf0f1 ;
color: #ecf0f1 ;
}
/******************************************************************************/
/* Table Data Rows: Data Rows Container */
.dTblRow {
display: flex ;
border-bottom: 1px solid #888 ;
}
/* Individual Cells (Headers and Data) */
/* Container for clickable items => class iptTarget */
.dTblHdrCell, .dTblDatCell {
flex: 1 ; /* specify equal widths */
padding: 3px ;
text-align: center ;
border-right: 1px solid #888 ;
/* */
cursor: pointer ;
height: 19px ;
}
/* Remove right border on the last column */
.dTblHdrCell:last-child, .dTblDatCell:last-child {
border-right: none ;
}
.noAvail {
background-color: #AFAFAF ;
color: #AFAFAF ;
}
<!-- ####################################################################### -->
<!-- Colouring styles to help with visual grouping of similar targets -->
.watch { background-color: #FFFFCF ; }
.task { background-color: #CFCFFF ; }
.std { background-color: #CFFFCF ; }
.sec { background-color: #FFCFCF ; }
</style>
<!-- ####################################################################### -->
<!-- Style section for control of pop-up window intended to present
guidance documentation about the various iptables targets for
packets that have reached a given table state within a chain
-->
<style>
/* Hidden popup background overlay */
.popup-overlay {
display: none ;
position: fixed ;
top: 0 ;
left: 0 ;
width: 100% ;
height: 100% ;
background-color: rgba(0, 0, 0, 0.05) ;
justify-content: center ;
/* */
align-items: center ;
z-index: 1000 ;
}
/* Popup content box */
.popup-content {
height: 50% ;
position: relative ;
/* size and profile */
width: 95% ;
max-width: calc(100vw - 20px) ;
padding-top: 5px ;
padding-right: 20px ;
padding-bottom: 20px ;
padding-left: 20px ;
border-radius: 10px ;
/* position */
position: absolute ;
transform: translate(-50%,-50%) ;
left: 50% ;
top: 80% ;
}
/* Iframe to display the external HTML file */
.popup-iframe {
width: 100% ;
height: calc(100% - 40px) ;
border: none ;
}
.close-btn {
padding: 0 ;
/* */
position: absolute ;
top: -15px ;
right: 20px ;
font-size: 24px ;
cursor: pointer ;
/* */
width: 40px ;
height: 20px ;
border-radius: 20px 20px 0 0;
border: none ;
background-color: #2F2F2F ;
color: white ;
}
</style>
<!-- ####################################################################### -->
<!-- FUTURES: Contents of the pre-load JavaScript file could be
incorporated here as embedded instead of external referencing
<script type="text/javascript"
src="Forwarding__PopupTargetInformation_preLoad.js"
defer >
</script>
-->
<!-- FUTURES: Contents of the CSS file could be incorporated
here as embedded here instead of external referencing
<link rel="stylesheet"
href="Forwarding__PopupTargetInformation.css" >
-->
</head>
<body>
<!-- ####################################################################### -->
<div class="PageLayout">
<div class="GuidanceBanner">
IPTABLES Guidance – Packet Destination Flow
</div>
<p class="FlowDescription">
<h3 class="FlowDescription"> Packet Destination: Pass Thru to Peer Host </h3
</p>
<div class="Forwarding">
<div class="dTblPreRouting">
<!-- Table Top Row: Table Banner -->
<div class="dTblBanner">
Chain: PREROUTING
</div>
<!-- Table Second Row: Sub-Column Headers -->
<div class="dTblRowPreRouting">
<div id="PRE_raw" class="dTblHdrCell iptTarget">raw</div>
<div id="PRE_mangle" class="dTblHdrCell iptTarget">mangle</div>
<div id="PRE_nat" class="dTblHdrCell iptTarget">nat</div>
</div>
<!-- Start of Data Rows -->
<div class="dTblRow">
<div id="PRE_raw_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
<div id="PRE_mng_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
<div id="PRE_nat_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t2" class="dTblDatCell iptTarget std">RETURN</div>
<div id="PRE_mng_t2" class="dTblDatCell iptTarget std">RETURN</div>
<div id="PRE_nat_t2" class="dTblDatCell iptTarget std">RETURN</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t3" class="dTblDatCell iptTarget std">DROP</div>
<div id="PRE_mng_t3" class="dTblDatCell iptTarget std">DROP</div>
<div id="PRE_nat_t3" class="dTblDatCell iptTarget std">DROP</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t4" class="dTblDatCell iptTarget std">Custom</div>
<div id="PRE_mng_t4" class="dTblDatCell iptTarget std">Custom</div>
<div id="PRE_nat_t4" class="dTblDatCell iptTarget std">Custom</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t5" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t5" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t5" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t6" class="dTblDatCell iptTarget task">QUEUE</div>
<div id="PRE_mng_t6" class="dTblDatCell iptTarget task">MARK</div>
<div id="PRE_nat_t6" class="dTblDatCell iptTarget task">REDIRECT</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t7" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t7" class="dTblDatCell iptTarget task">TTL</div>
<div id="PRE_nat_t7" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t8" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t8" class="dTblDatCell iptTarget task">TOS</div>
<div id="PRE_nat_t8" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t9" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t9" class="dTblDatCell iptTarget task">DSCP</div>
<div id="PRE_nat_t9" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t10" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t10" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t10" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t11" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t11" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t11" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t12" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t12" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t12" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t13" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t13" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t13" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t14" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t14" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t14" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t15" class="dTblDatCell iptTarget watch">NOTRACK</div>
<div id="PRE_mng_t15" class="dTblDatCell iptTarget watch">ROUTING</div>
<div id="PRE_nat_t15" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t16" class="dTblDatCell iptTarget watch">TRACE</div>
<div id="PRE_mng_t16" class="dTblDatCell iptTarget watch">CONNMARK</div>
<div id="PRE_nat_t16" class="dTblDatCell iptTarget watch">DNAT</div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t17" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t17" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t17" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t18" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t18" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t18" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t19" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t19" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t19" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PRE_raw_t20" class="dTblDatCell noAvail"></div>
<div id="PRE_mng_t20" class="dTblDatCell noAvail"></div>
<div id="PRE_nat_t20" class="dTblDatCell noAvail"></div>
</div>
</div>
<!-- ####################################################################### -->
<div class="dTblDivider">
</div>
<!-- ####################################################################### -->
<div class="dTblForward">
<!-- Table Top Row: Table Banner -->
<div class="dTblBanner">
Chain: FORWARD
</div>
<!-- Table Second Row: Sub-Column Headers -->
<div class="dTblRowForward">
<div id="FWD_mangle" class="dTblHdrCell iptTarget">mangle</div>
<div id="FWD_filter" class="dTblHdrCell iptTarget">filter</div>
<div id="FWD_security" class="dTblHdrCell iptTarget">security</div>
</div>
<!-- Data Row 1 -->
<div class="dTblRow">
<div id="FWD_mng_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
<div id="FWD_flt_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
<div id="FWD_sec_t1" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t2" class="dTblDatCell iptTarget std">RETURN</div>
<div id="FWD_flt_t2" class="dTblDatCell iptTarget std">RETURN</div>
<div id="FWD_sec_t2" class="dTblDatCell iptTarget std">RETURN</div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t3" class="dTblDatCell iptTarget std">DROP</div>
<div id="FWD_flt_t3" class="dTblDatCell iptTarget std">DROP</div>
<div id="FWD_sec_t3" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t4" class="dTblDatCell iptTarget std">Custom</div>
<div id="FWD_flt_t4" class="dTblDatCell iptTarget std">Custom</div>
<div id="FWD_sec_t4" class="dTblDatCell iptTarget std">Custom</div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t5" class="dTblDatCell noAvail"></div>
<div id="FWD_flt_t5" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t5" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t6" class="dTblDatCell iptTarget task">MARK</div>
<div id="FWD_flt_t6" class="dTblDatCell iptTarget task">NFQUEUE</div>
<div id="FWD_sec_t6" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t7" class="dTblDatCell iptTarget task">TTL</div>
<div id="FWD_flt_t7" class="dTblDatCell iptTarget task">REJECT</div>
<div id="FWD_sec_t7" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t8" class="dTblDatCell iptTarget task">TOS</div>
<div id="FWD_flt_t8" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t8" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t9" class="dTblDatCell iptTarget task">DSCP</div>
<div id="FWD_flt_t9" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t9" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t10" class="dTblDatCell iptTarget task">QUEUE</div>
<div id="FWD_flt_t10" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t10" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t11" class="dTblDatCell iptTarget task">TCPMSS</div>
<div id="FWD_flt_t11" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t11" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t12" class="dTblDatCell iptTarget task">ECN</div>
<div id="FWD_flt_t12" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t12" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t13" class="dTblDatCell noAvail"></div>
<div id="FWD_flt_t13" class="dTblDatCell iptTarget watch">LOG</div>
<div id="FWD_sec_t13" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t14" class="dTblDatCell noAvail"></div>
<div id="FWD_flt_t14" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t14" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t15" class="dTblDatCell noAvail"></div>
<div id="FWD_flt_t15" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t15" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t16" class="dTblDatCell iptTarget watch">CONNMARK</div>
<div id="FWD_flt_t16" class="dTblDatCell iptTarget watch">TRACE</div>
<div id="FWD_sec_t16" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t17" class="dTblDatCell noAvail"></div>
<div id="FWD_flt_t17" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t17" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t18" class="dTblDatCell iptTarget sec">CHECKSUM</div>
<div id="FWD_flt_t18" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t18" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t19" class="dTblDatCell iptTarget sec">SECMARK</div>
<div id="FWD_flt_t19" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t19" class="dTblDatCell iptTarget sec">SECMARK</div>
</div>
<div class="dTblRow">
<div id="FWD_mng_t20" class="dTblDatCell iptTarget sec">CONNSECMARK</div>
<div id="FWD_flt_t20" class="dTblDatCell noAvail"></div>
<div id="FWD_sec_t20" class="dTblDatCell iptTarget sec">CONNSECMARK</div>
</div>
</div>
<!-- ####################################################################### -->
<div class="dTblDivider">
</div>
<!-- ####################################################################### -->
<div class="dTblPostRouting">
<!-- Table Top Row: Table Banner -->
<div class="dTblBanner">
Chain: POSTROUTING
</div>
<!-- Table Second Row: Sub-Column Headers -->
<div class="dTblRowPostRouting">
<div id="PST_mangle" class="dTblHdrCell iptTarget">mangle</div>
<div id="PST_nat" class="dTblHdrCell iptTarget">nat</div>
</div>
<!-- Data Row 1 -->
<div class="dTblRow">
<div id="PST_mng_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
<div id="PST_nat_t1" class="dTblDatCell iptTarget std">ACCEPT</div>
</div>
<div class="dTblRow">
<div id="PST_mng_t2" class="dTblDatCell iptTarget std">RETURN</div>
<div id="PST_nat_t2" class="dTblDatCell iptTarget std">RETURN</div>
</div>
<div class="dTblRow">
<div id="PST_mng_t3" class="dTblDatCell iptTarget std">DROP</div>
<div id="PST_nat_t3" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t4" class="dTblDatCell iptTarget std">Custom</div>
<div id="PST_nat_t4" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t5" class="dTblDatCell noAvail"></div>
<div id="PST_nat_t5" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t6" class="dTblDatCell iptTarget task">MARK</div>
<div id="PST_nat_t6" class="dTblDatCell iptTarget task">SNAT</div>
</div>
<div class="dTblRow">
<div id="PST_mng_t7" class="dTblDatCell iptTarget task">TTL</div>
<div id="PST_nat_t7" class="dTblDatCell iptTarget task">MASQUERADE</div>
</div>
<div class="dTblRow">
<div id="PST_mng_t8" class="dTblDatCell iptTarget task">TOS</div>
<div id="PST_nat_t8" class="dTblDatCell iptTarget task">NETMAP</div>
</div>
<div class="dTblRow">
<div id="PST_mng_t9" class="dTblDatCell iptTarget task">DSCP</div>
<div id="PST_nat_t9" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t10" class="dTblDatCell iptTarget task">CLASSIFY</div>
<div id="PST_nat_t10" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t11" class="dTblDatCell iptTarget task">SNTP</div>
<div id="PST_nat_t11" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t12" class="dTblDatCell noAvail"></div>
<div id="PST_nat_t12" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t13" class="dTblDatCell iptTarget watch">LOG</div>
<div id="PST_nat_t13" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t14" class="dTblDatCell iptTarget watch">ULOG</div>
<div id="PST_nat_t14" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t15" class="dTblDatCell iptTarget watch">NFLOG</div>
<div id="PST_nat_t15" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t16" class="dTblDatCell iptTarget watch">CONNMARK</div>
<div id="PST_nat_t16" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t17" class="dTblDatCell noAvail"></div>
<div id="PST_nat_t17" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t18" class="dTblDatCell iptTarget sec">CHECKSUM</div>
<div id="PST_nat_t18" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t19" class="dTblDatCell iptTarget sec">SECMARK</div>
<div id="PST_nat_t19" class="dTblDatCell noAvail"></div>
</div>
<div class="dTblRow">
<div id="PST_mng_t20" class="dTblDatCell iptTarget sec">CONNSECMARK</div>
<div id="PST_nat_t20" class="dTblDatCell noAvail"></div>
</div>
</div>
<!-- ####################################################################### -->
</div>
</div>
<!-- ####################################################################### -->
<!-- Popup Layer Overlay -->
<div id="popupLayer" class="popup-overlay">
<div class="popup-content">
<button class="close-btn" onclick="closePopup()">×</button>
<iframe id="popupFrame" class="popup-iframe" src=""></iframe>
</div>
</div>
<!-- ####################################################################### -->
<!-- Contents of the post-load JavaScript file have been incorporated
here as embedded instead of external referencing
<script type="text/javascript"
src="Forwarding__PopupTargetInformation_postLoad.js"
defer >
</script>
-->
<!-- On-Load JavaScript Logic - specific to documentation selection+display -->
<script>
// Consider all clickable iptTargets
const infoDoc = document.querySelectorAll('.iptTarget');
const popupLayer = document.getElementById('popupLayer');
const popupFrame = document.getElementById('popupFrame');
// Add click event listener to each iptTarget
infoDoc.forEach(iptTarget => {
iptTarget.addEventListener('click', function() {
// Get the ID of the clicked div
const baseName = iptTarget.id ;
// Build the file path (e.g., "about-us.html")
const targetPage = `${baseName}.html`;
// Set the iframe source to the target page
popupFrame.src = targetPage ;
// Change CSS display property from 'none' to 'flex' to show popup
popupLayer.style.display = 'flex';
});
});
// Function to hide the popup and clear iframe source
function closePopup() {
popupLayer.style.display = 'none';
popupFrame.src = '';
}
// Close popup if user clicks outside the content box
window.addEventListener('click', function(event) {
if (event.target === popupLayer) {
closePopup();
}
});
</script>
<!-- ####################################################################### -->
<footer>
<p>
Applicable Licensing: GPLv3 or later<br/>
<br/>
<b>© 2026 Eric Marceau <ericmarceau [ at ] rogers [ dot ] com>, Ottawa, Canada.</b><br/>
<br/>
For the full text of the GNU General Public License version 3.0 (a.k.a. GPLv3)<br/>
please visit: https://spdx.org/licenses/GPL-3.0-or-later.html
</p>
</footer>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Guidance on overall purpose of targets at raw stage within PREROUTING chain</title>
<style>
body {
background-color: #2F2F2F ;
color: light-blue ;
}
.popup_banner{
/*
color: #FFCF8F ;
*/
color: black ;
background-color: #BFFFBF ;
margin: 0px ;
text-align: left ;
font-family: "Liberation Sans", "Aileron", "Archivo", FreeSerif, serif ;
font-size: 20px ;
font-style: 900 ;
/*
line-height: 20px ;
*/
padding: 10px ;
}
.popup_guidance{
/* used for "guidance text displayed in popup window */
color: #CFCFFF ;
margin: 30px 14px 0 14px ;
text-align: justify ;
font-size: 18px ;
line-height: 26px ;
}
</style>
</head>
<body>
<div class="popup_banner">
<b>GUIDANCE</b> - Overall purpose of targets at <b><i>raw</i></b> stage within <b>PREROUTING</b> chain
</div>
<div class="popup_guidance">
<i>( dummy content for purposes of demonstration )</i><br/><br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.
</div>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Guidance for Selecting ACCEPT as Target for PREROUTING Packets Evaluated at RAW Stage</title>
<style>
body {
background-color: #2F2F2F ;
color: light-blue ;
}
.popup_banner{
/*
color: #FFCF8F ;
*/
color: black ;
background-color: #BFFFBF ;
margin: 0px ;
text-align: left ;
font-family: "Liberation Sans", "Aileron", "Archivo", FreeSerif, serif ;
font-size: 20px ;
font-style: 900 ;
/*
line-height: 20px ;
*/
padding: 10px ;
}
.popup_guidance{
/* used for "guidance text displayed in popup window */
color: #CFCFFF ;
margin: 30px 14px 0 14px ;
text-align: justify ;
font-size: 18px ;
line-height: 26px ;
}
</style>
</head>
<body>
<div class="popup_banner">
<b>GUIDANCE</b> - Choosing <b>ACCEPT</b> as Target for PREROUTING Packets Evaluated at <i>raw</i> Stage
</div>
<div class="popup_guidance">
<i>( dummy content for purposes of demonstration )</i><br/><br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.<br/>
</div>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Guidance on overall purpose of targets at mangle stage within FORWARD chain</title>
<style>
body {
background-color: #2F2F2F ;
color: light-blue ;
}
.popup_banner{
/*
color: #FFCF8F ;
*/
color: black ;
background-color: #BFFFBF ;
margin: 0px ;
text-align: left ;
font-family: "Liberation Sans", "Aileron", "Archivo", FreeSerif, serif ;
font-size: 20px ;
font-style: 900 ;
/*
line-height: 20px ;
*/
padding: 10px ;
}
.popup_guidance{
/* used for "guidance text displayed in popup window */
color: #CFCFFF ;
margin: 30px 14px 0 14px ;
text-align: justify ;
font-size: 18px ;
line-height: 26px ;
}
</style>
</head>
<body>
<div class="popup_banner">
<b>GUIDANCE</b> - Overall purpose of targets at <b><i>mangle</i></b> stage within <b>FORWARD</b> chain
</div>
<div class="popup_guidance">
<i>( dummy content for purposes of demonstration )</i><br/><br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.
</div>
</body>
</html>
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Guidance on overall purpose of targets at nat stage within POSTROUTING chain</title>
<style>
body {
background-color: #2F2F2F ;
color: light-blue ;
}
.popup_banner{
/*
color: #FFCF8F ;
*/
color: black ;
background-color: #BFFFBF ;
margin: 0px ;
text-align: left ;
font-family: "Liberation Sans", "Aileron", "Archivo", FreeSerif, serif ;
font-size: 20px ;
font-style: 900 ;
/*
line-height: 20px ;
*/
padding: 10px ;
}
.popup_guidance{
/* used for "guidance text displayed in popup window */
color: #CFCFFF ;
margin: 30px 14px 0 14px ;
text-align: justify ;
font-size: 18px ;
line-height: 26px ;
}
</style>
</head>
<body>
<div class="popup_banner">
<b>GUIDANCE</b> - Overall purpose of targets at <b><i>nat</i></b> stage within <b>POSTROUTING</b> chain
</div>
<div class="popup_guidance">
<b>NOTE:</b> If destination is 'localhost', there is no benefit to applying Network Address Translation, so the only relevant target for that scenario is 'ACCEPT'.<br/><br/>
<i>( dummy content for purposes of demonstration )</i><br/><br/>
Guidance text for selected cell. This would normally contain lots of information, detail and all sorts of descriptive and informative text that would help the user in making the choices as to what they should type in for input.
</div>
</body>
</html>
